A S275JR Trench Drain Cover Plate is a steel drainage cover designed to span open trenches, drainage channels, service channels and similar recessed areas while allowing water and other liquids to pass through.
S275JR is an EN 10025-2 non-alloy structural steel grade. For thicknesses up to 16 mm, the grade has a minimum yield strength of 275 MPa, with the specified mechanical properties changing with material thickness.
For drainage projects, the material grade is only one part of the design. The bearing bar size, spacing, panel dimensions, support span, surface treatment and installation method all affect the final trench drain cover plate configuration.
An S275JR Trench Drain Cover Plate is generally fabricated from S275JR structural steel and manufactured as a steel grating or framed grating panel.
Instead of completely closing a drainage channel with a solid steel plate, a grating-style cover provides open spaces between the bearing and cross bars. This allows rainwater, process water and other liquids to enter the drainage channel while the cover provides a walkable or trafficable surface, depending on its engineered load capacity.
Fenghua's steel grating application information identifies trench covers and well covers as common drainage applications, including factories, parks, roads, kitchens and municipal facilities.
For projects requiring accurate installation, a framed configuration can also be considered. Fenghua's framed steel grating uses a welded perimeter frame and is specifically described for trench covers, access covers and equipment covers.
S275JR is widely used as a structural steel grade for fabricated steel components. Its mechanical properties make it suitable for many general structural applications when the required loading and span are properly designed.
For a S275JR trench drain cover, the material can provide a practical balance between structural performance, fabrication requirements and project cost.
S275JR has a specified minimum yield strength of 275 MPa for thinner material under EN 10025-2 requirements. As thickness increases, the minimum yield strength specified for the grade decreases, so the actual material thickness should always be considered during engineering and procurement.
However, material grade alone does not determine whether a trench cover is suitable for a particular load.
The complete design should consider:
Bearing bar dimensions
Bearing bar spacing
Cross bar spacing
Panel length and width
Support conditions
Vehicle or pedestrian loading
Required safety factors
Deflection requirements
The term trench drain cover plate can describe different physical designs.
For drainage applications, open steel grating is often selected when continuous water passage is required. Fenghua's open steel grating information describes plain, serrated, framed and customized configurations, including applications such as trench covers.
A solid steel plate, on the other hand, provides a continuous surface but requires drainage openings, slots or other engineered provisions if water needs to pass through the cover.
For this reason, buyers should define whether the project requires:
Open steel grating – for drainage, ventilation and visual access to the channel.
Framed steel grating – when dimensional accuracy, edge reinforcement or a defined perimeter is required.
Solid trench cover plate – when a continuous surface is required and drainage is provided through dedicated openings.
The appropriate design depends on the trench structure and site conditions.
A successful trench cover project starts with the opening and loading conditions rather than simply selecting a standard product name.
The clear opening of the drainage channel determines the required panel dimensions.
Buyers should normally provide:
Clear trench width
Panel length
Bearing direction
Supporting ledge dimensions
Number of cover sections
Required removable sections
For large or irregular drainage systems, multiple smaller panels may be easier to remove for inspection and maintenance.
The bearing bars carry most of the applied load.
A heavier bearing bar may be required where the trench cover is exposed to forklifts, maintenance vehicles or other concentrated loads.
The bearing bar height and thickness should therefore be selected according to the actual span and loading condition rather than using the material grade as the only selection criterion.
Spacing affects both load distribution and the size of the openings.
Smaller spacing may be appropriate where pedestrian safety, small wheels or smaller objects passing through the grating need to be considered.
Larger spacing can provide greater open area, but it must remain compatible with the intended application.
A plain S275JR trench drain cover provides a relatively smooth walking surface.
A serrated steel grating cover adds serrations to the bearing bars to improve slip resistance, making it useful in wet or oily environments.
Fenghua offers plain and serrated steel grating configurations, with serrated grating intended for applications where additional anti-slip performance is required.
For drainage areas where water, oil or other liquids may accumulate, surface selection should be considered together with the site's operating conditions.
A S275JR trench drain cover plate can be considered for a range of industrial, commercial and infrastructure drainage applications.

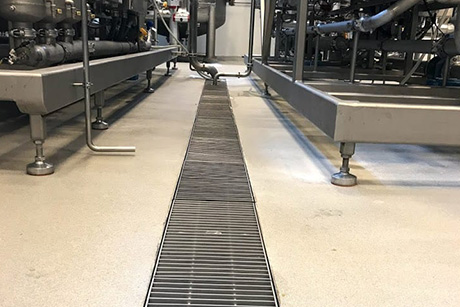

Factories often contain drainage channels around production areas, equipment zones and service corridors.
A removable steel grating cover allows drainage while maintaining access across the channel.
Outdoor yards may require drainage channels to manage rainwater and surface runoff.
A properly designed steel trench cover can provide a surface over the drainage channel while maintaining access for personnel and equipment.
Drainage covers are also used in public facilities, roads, parks and other municipal environments.
Fenghua's application information specifically lists trench and well covers among its steel grating applications.
Commercial kitchens, service corridors, parking areas and utility zones may also require removable drainage covers.
The appropriate material, surface treatment and load rating depend on the environment and traffic conditions.
Because S275JR is a carbon/non-alloy structural steel rather than stainless steel, surface protection should be considered for environments where corrosion exposure is expected.
Common options include:
Hot-dip galvanizing
Provides a zinc coating for corrosion protection and is widely used for steel grating exposed to outdoor or humid conditions.
Painting
Can be selected when a specific coating system or project color is required.
Other specified coatings
Depending on the project, customers may request a particular corrosion-protection system.
Fenghua's open steel grating information lists hot-dip galvanizing, painting and other surface-treatment options for steel grating products.
The coating system should be selected according to the drainage environment, exposure conditions and project specification.
For some drainage channels, a framed design can simplify installation and improve dimensional stability.
A framed S275JR trench drain cover can incorporate a welded perimeter frame around the grating panel.
This configuration can be useful when:
The trench has a defined supporting ledge
The cover requires a reinforced perimeter
Accurate panel dimensions are important
The cover needs to be removed for maintenance
The project requires multiple interchangeable panels
Fenghua describes framed steel grating as a configuration with a welded peripheral frame and identifies trench covers and access covers among its applications.
When requesting a quotation from an S275JR trench drain cover plate manufacturer, providing the following information can help avoid repeated technical confirmation.
Specification | Information to Provide |
|---|---|
Material | S275JR |
Product type | Open, serrated, framed or solid plate |
Clear trench opening | Width and length |
Panel size | Overall length × width |
Bearing bar | Height × thickness |
Bearing bar spacing | Required pitch |
Cross bar | Type and spacing |
Surface | Plain or serrated |
Surface treatment | Galvanized, painted or other |
Loading | Pedestrian, trolley, forklift, vehicle or specified load |
Installation | Removable, hinged, bolted or other |
Quantity | Number of panels |
Applicable standard | Project/customer requirement |
For custom projects, drawings or site photographs can also help the manufacturer understand the trench configuration.
Fenghua states that customers can provide dimensions, drawings, site photographs, material and surface-treatment requirements for customized steel grating production.
S275JR and S355JR are both structural steel grades covered by the EN 10025-2 family, but they have different specified yield-strength levels.
For thinner material, S275JR has a minimum yield strength of 275 MPa, while S355JR has a higher specified yield strength of 355 MPa. The applicable value depends on material thickness and the relevant standard requirements.
This does not mean that S355JR should automatically replace S275JR in every trench cover project.
The selection should be based on:
Required load capacity
Span
Bearing bar dimensions
Deflection requirements
Vehicle traffic
Project specifications
Material availability
Fabrication requirements
Overall project cost
A properly engineered S275JR trench drain cover plate can therefore be appropriate where its structural design meets the project's requirements.
Trench systems are rarely identical from one project to another.
The drainage channel may have different widths, support conditions, bends, intersections, access points or changes in elevation.
A customized steel trench drain cover can be fabricated to match the actual installation conditions rather than forcing a standard panel into an unsuitable opening.
Customization may include:
Non-standard panel dimensions
Different bearing bar sizes
Different mesh spacing
Serrated surfaces
Perimeter frames
Cut-outs
Hinged sections
Lifting handles
Fixing holes
Special-shaped panels
Additional reinforcement
Fenghua also offers special-shaped steel grating for irregular areas, with customization based on drawings, site photographs, dimensions and installation requirements.
Consider an industrial facility with a drainage channel running alongside a production area.
The cover needs to:
Allow water to enter the drainage channel
Support routine pedestrian traffic
Remain removable for channel cleaning
Resist the site's expected environmental exposure
Fit accurately onto the existing trench supports
In this situation, an S275JR trench drain cover plate could be designed with a suitable bearing bar arrangement and surface treatment.
If forklifts or maintenance vehicles also cross the drainage channel, the design should be recalculated for the actual wheel loads and span rather than simply selecting a heavier material grade.
This approach helps connect the material specification with the real operating conditions of the project.
When sourcing from an S275JR trench drain cover plate manufacturer, buyers should look beyond the material name and compare the complete manufacturing and engineering capability.
Important points include:
Material control
Confirm that the supplied material corresponds to the specified S275JR grade and required documentation.
Grating fabrication
Check bearing bar dimensions, spacing, welding quality and panel accuracy.
Customization capability
Confirm whether the supplier can produce different sizes, frames, cut-outs and special shapes.
Surface treatment
Clarify the requested galvanizing, painting or other coating requirements.
Load requirements
Provide actual project loading information so the manufacturer can recommend an appropriate configuration.
Export capability
For overseas projects, packaging, documentation, production coordination and delivery arrangements should also be considered.
Fenghua Wire Mesh is a China-based manufacturer and supplier specializing in steel grating and stainless steel wire mesh products.
Its steel grating range includes open steel grating, framed steel grating, serrated grating and customized configurations. The company states that it supports customized production for overseas customers.
For an S275JR trench drain cover plate, customers can provide the trench opening, panel dimensions, expected load, bearing bar requirements, surface treatment and installation conditions.
Fenghua can then evaluate the appropriate steel grating configuration for the project.
Email: sales@fhgrating.com
WhatsApp: +86 133 1583 5959
Phone: +86 133 1583 5959
S275JR is a structural steel grade used for fabricated steel components. It can be used for trench drain covers when the selected grating configuration is properly designed for the required span and loading conditions.
A trench cover describes the application, while steel grating describes the construction type. An S275JR trench cover can therefore be manufactured using open, serrated or framed steel grating.
Yes. Hot-dip galvanizing is commonly used as a corrosion-protection option for carbon steel grating. The final coating specification should be confirmed according to the project environment and requirements.
Plain grating may be suitable for general applications. Serrated grating can provide additional slip resistance where water, oil or other slippery substances are present.
Yes. Customization can include panel dimensions, bearing bar sizes, spacing, frames, cut-outs, lifting features and other installation requirements. Fenghua states that customized steel grating production is available for overseas customers.
At minimum, provide the trench opening dimensions, panel size, expected load, S275JR material requirement, surface treatment and preferred grating configuration. A drawing or site photograph can make the quotation process more accurate.
An S275JR Trench Drain Cover Plate combines a defined structural steel grade with a drainage-focused grating design.
For industrial, municipal and commercial drainage systems, the final product should be selected according to the actual trench opening, load conditions, bearing bar configuration, surface requirements and installation method.
