Stair Tread Series Grating

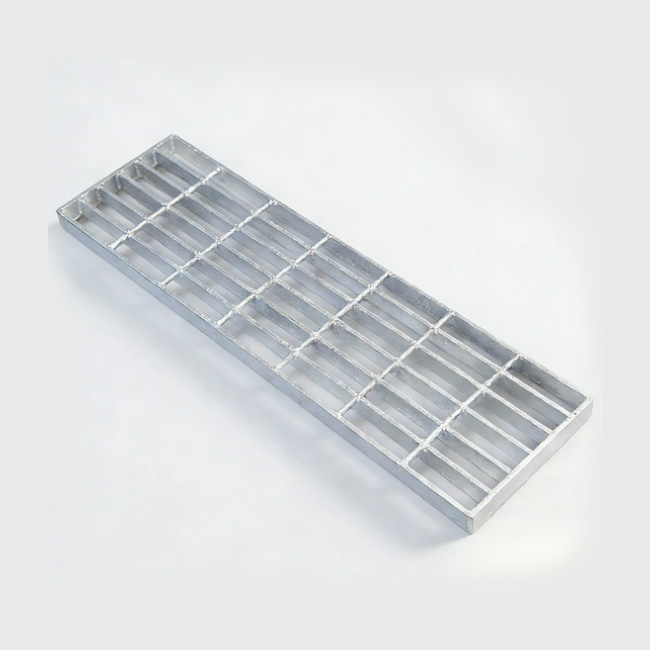

T1 steel grating stair tread is a standard general-purpose stair tread. Manufactured from hot-dip galvanized steel grating, it has no front nosing plate and no side plates. Featuring a simple structure and high cost performance, it is a universal basic stair tread for industrial steel structure stairs.

Structure & Style

1. Panel: Fabricated by welding plain flat bars / serrated non-slip flat bars with twisted square bars;

2. Style: Standard Type T1 – no edges, no guard plates, no side plates;

3. Perimeter banding reinforcement with firm overall welding, resistant to deformation;

4. Overall hot-dip galvanized surface for anti-corrosion protection.

Material & Process

• Main material: Q235 low carbon steel

• Process: High-pressure resistance welding, fusion welding of flat bars and twisted square bars;

• Surface treatment: Hot-dip galvanizing (rustproof, corrosion-resistant, acid and alkali resistant, long service life). Spray painting and stainless steel material are optional;

• Anti-slip option: Serrated flat bars available for wet, oily and slippery environments.

Product Features

1. Light weight, high load capacity, impact resistant, stable and durable;

2. Ventilated and drainable, no water accumulation, easy to clean, maintenance-free;

3. Hot-dip galvanized surface suitable for outdoor, workshop and humid environments;

4. Simple installation, can be fixed by welding or mounting clips;

5. Economical and simple design, preferred for large-scale stair projects.

Common Specifications

• Standard depth: 25mm, 30mm, 32mm, 40mm

• Flat bar thickness: 3mm, 4mm, 5mm

• Mesh spacing: 30×100mm, 40×100mm (national standard)

• Dimensions: Non-standard sizes customizable according to stair width

Application Scope

Widely used in general access areas including steel structure stairs in factories, maintenance stairs in workshops, warehouse shelf stairs, equipment ladders, simple stairs for municipal engineering, outdoor ladders in industrial zones, etc.

Brief Difference Between T1 / T2 / T3 / T4 Stair Treads

• T1: No side plates, no front nosing plate (simplest type)

• T2: With side plates on both sides

• T3: With front nosing plate + anti-slip strip

• T4: With side plates on both sides + front nosing plate (full-protection type)
